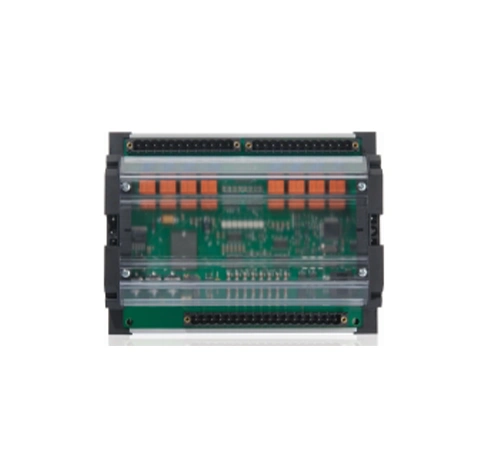

The IKD 1 is a smart solution to increase numbers of digital I/O’s to Woodward easYgen and DTSC-200 series controllers. It is possible to connect one or more IKD 1 units to the power management controllers Each of the inputs can be assigned a name, alarm class, NO/NC configuration and time delay. The name and class are displayed on the connected genset controller’s display.
- 8 configurable discrete alarm inputs
- 8 configurable FORM C relays with potential free contacts
- Configurable delays for each input
- CAN bus communication
- The discrete inputs transfer their status via CAN bus to the control unit.
- The control unit evaluates the status of these discrete inputs coming from the IKD 1 and depending on the configuration of the control unit, will take the appropriate action.
- The control unit can send commands via the CAN bus to remotely control the output relays of the IKD 1.
- The IKD 1 can be used with other manufacturer’s controllers. Consult product manual 37135 for information regarding the address assignments of the CAN bus interface.
