505XT

505XT

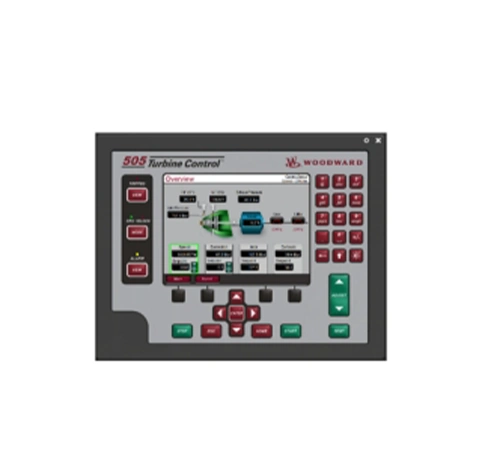

The 505XT control is packaged in an industrial hardened enclosure designed to be mounted within a system control panel located in a plant control room or next to the turbine. The control’s front panel serves as both a programming station and operator control panel (OCP). This user-friendly front panel allows engineers to access and program the unit to the specific plant’s requirements, and plant operators to easily start/stop the turbine and enable/disable any control mode. Password security protects all unit program mode settings. The controller’s 8.4-inch (21.3 cm) graphical display allows operators to view actual and setpoint values fromthe same screen, simplifying turbine operation.

Category:

The 505XT controller is designed to operate single valve, or single extraction/admission industrial steam turbines of all sizes and applications. This steam turbine controller includes specifically designed algorithms and logic to start, stop, control, and protect industrial steam turbines or turbo-expanders, driving generators, compressors, pumps, or industrial fans.

1. Field-configurable
2. Integrated graphical operator control panel
3. Automatic start routines
4. Integrated first-out problem indicator
5. Trip and Alarm event recorder
6. Ext/Adm Decoupling
7. User-friendly menu format
8. Multi-Lingual
9. Ext/Adm Map Display Screen
10. OPTI TUNE PID controllers
11. Real-time clock synchronization via SNTP
12. Ethernet communications
13. Same form-fitfunction as previous 505E versions
14. Sulfur-resistant conformal coating
15. Certified for Hazardous Locations
